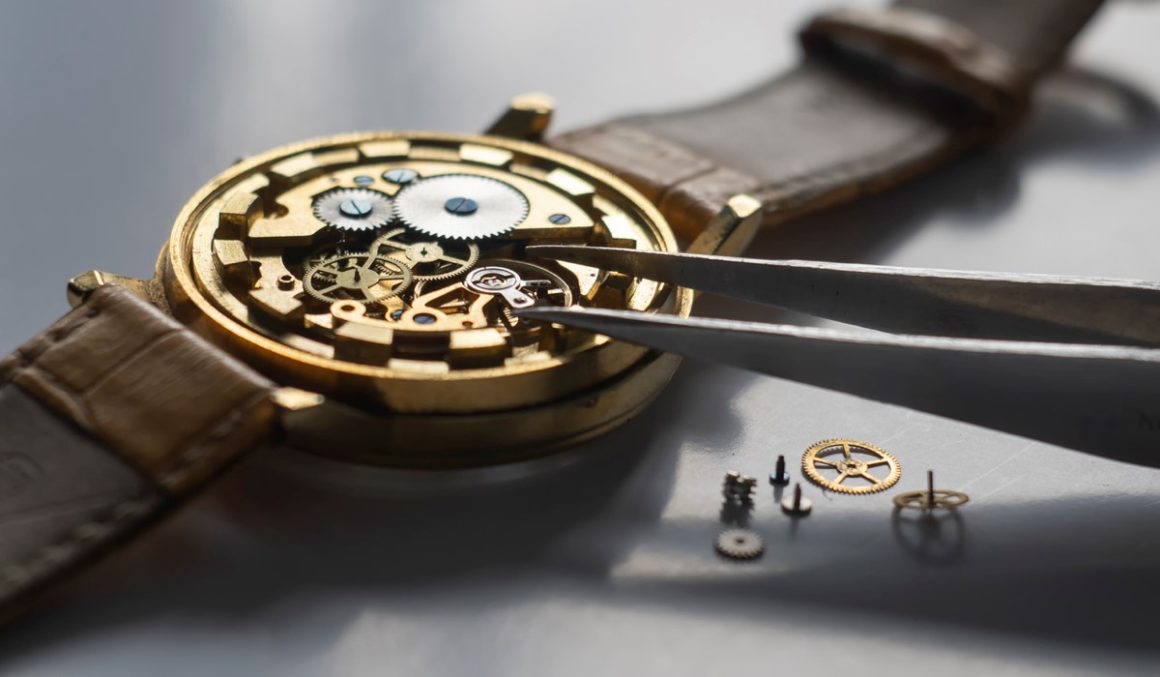

Discover the fascinating world of mechanical watches! While some people may have moved on to quartz and smart devices for telling the time, there’s something special about a device that runs purely on mechanical power. Mechanical watches are truly marvels of engineering, and they’ve been around for centuries! There’s something fascinating about the precision and craftsmanship that goes into making them. In this article, we’ll explore the inner workings of a mechanical watch movement, as well as the intricate parts and mechanisms that keep it running without batteries or electronics. From the mainspring that stores the energy to the barrel that contains it, and the power source that keeps it all going, we’ll take you on a tour of the major elements that form the core of any mechanical watch. So sit back, relax, and get ready to learn something new about this timeless technology.
Table of Contents
There are Seven Main Components of a Mechanical Watch:
- Mainspring – a coiled spring that provides the power to run the watch
- Barrel – a cylindrical container that houses the mainspring
- Escapement – a mechanism that regulates the release of energy from the mainspring
- Balance wheel – a wheel that oscillates back and forth to regulate the timekeeping
- Gear train – a set of gears that transmit power from the mainspring to the escapement and balance wheel
- Crown – a button or knob on the outside of the watch that is used to wind the mainspring and set the time
- Dial – the face of the watch that displays the time, often including hour markers and minute and second hands.
Mainspring
When it comes to mechanical watches, the mainspring is the heart and soul of the timepiece. It is the element that drives the watch, allowing it to keep accurate time and function properly.
Made from a flat spring-steel band that is stressed in bending or coiling, the mainspring stores energy that is transmitted to the oscillating section of the watch called the balance. The wheel train and escapement are responsible for transmitting this energy, with the balance controlling the release of the escapement and timing the watch.
But why is the mainspring so important? Well, without it, the watch would simply stop running. The mainspring is what keeps the watch ticking, allowing it to keep track of the passing seconds, minutes, and hours.
Early watches had a major flaw in the variation of torque exerted by the mainspring. When fully wound, the force of the mainspring was greater than when it was almost run down. This variation greatly influenced the timekeeping of a watch fitted with a verge escapement.
To solve this issue, the fusee was invented, which is a cone-shaped, grooved pulley used together with a barrel containing the mainspring. With this arrangement, the mainspring was made to rotate a barrel in which it was housed. A length of catgut, later replaced by a chain, was wound on it, the other end being coiled around the fusee. As the mainspring ran down, the leverage was progressively increased as the gut or chain pulled on a larger radius. With correct proportioning of mainspring and fusee radii, an almost constant torque was maintained as the mainspring unwound.
Barrel
The afore-mentioned barrel is also one of the most important components in a mechanical watch. Essentially, the barrel is a cylindrical container that houses the mainspring which, as mentioned, is the primary power source of the watch.
The barrel plays a critical role in regulating the flow of energy from the mainspring to the rest of the watch. As the mainspring unwinds, it releases energy that is transmitted through the barrel’s gears and wheels to power the watch’s movement. The barrel’s design allows for the controlled release of this energy to ensure the watch keeps accurate time and maintains consistent power.
But the barrel isn’t just a functional component of the watch; it’s also a work of art in its own right. In many high-end mechanical watches, the barrel is often elaborately decorated and visible through the back of watch’s case. Some watchmaker tools take this to the next level, engraving the barrel with intricate designs or even setting precious stones into its surface.
In addition to its practical and aesthetic functions, the barrel also has historical significance. The use of barrels in watchmaking dates back to the 15th century, when early timepieces were still powered by weights and pendulums. As the technology of timekeeping evolved, the barrel remained a crucial part of the mechanical watch, adapting to new designs and innovations.
Escapement
An escapement is the beating heart of a mechanical watch, responsible for regulating the energy flow from the mainspring to the timekeeping mechanism. It is a crucial component that ensures accurate and consistent timekeeping.
The escapement consists of a series of gears that interact with a pallet fork, that acts as a gate, controlling the flow of energy to the balance wheel. The balance wheel oscillates back and forth, with each swing representing a tick or a tock, and the pallet fork allows the escape wheel to advance one tooth with each oscillation. This action transfers energy from the mainspring to the balance wheel, which is then released in a controlled manner, keeping the watch’s timekeeping accurate.
The escapement also helps to ensure that the watch remains wound by controlling the rate at which the mainspring unwinds. The pallet fork’s interaction with the escape wheel allows the mainspring to unwind at a controlled rate, preventing it from releasing too much energy at once and causing the watch to stop.
The escapement also has a role in the regulation of the watch’s speed. The size and shape of the pallet fork’s teeth determine the frequency of the watch’s ticks, and adjusting the shape and size of the teeth can change the watch’s rate. A skilled watchmaker can adjust the pallet fork to fine-tune the watch’s timekeeping, ensuring that it keeps accurate time over long periods.
Balance Wheel
The balance wheel is a tiny, circular wheel works in tandem with the escapement and mainspring to keep the watch running smoothly and accurately. It’s a weighted wheel that rotates back and forth at a consistent pace, much like a pendulum. This back and forth motion is regulated by the escapement and the hairspring, which work together to control the speed at which the balance wheel oscillates.
The hairspring is a tiny spiral spring that is attached to the balance wheel. It serves to resist the motion of the balance wheel and to control the rate at which it swings back and forth. The escapement, on the other hand, is a set of gears and levers that work together to regulate the speed at which the watch runs.
As the balance wheel swings back and forth, it triggers the escapement to release a set amount of energy from the mainspring, which in turn moves the gears that power the watch’s hands. The balance wheel and escapement work in a constant cycle, ensuring that the watch runs smoothly and accurately.
One of the key features of a high-quality balance wheel is its ability to resist changes in temperature and other external factors. A well-made balance wheel will be able to maintain a consistent rate of oscillation regardless of the conditions it is exposed to, ensuring that the watch remains accurate over time.
Gear Train
The gear train drives the intricate mechanisms that make a mechanical watch tick. It is the network of gears that transmits energy from the mainspring to the escapement, and ultimately to the balance wheel, which keeps the watch’s timekeeping accurate and consistent.
The gear train consists of several wheels, each with a different number of teeth, that are arranged in a specific sequence to achieve a precise and controlled rate of rotation. The first wheel, called the mainspring barrel, receives the energy from the mainspring and transfers it to the next wheel, which is called the center wheel. The center wheel then drives the third wheel, which is connected to the fourth wheel or escape wheel. The escapement is the mechanism that regulates the energy flow to the balance wheel by periodically interrupting the rotation of the escape wheel.
The gear train’s role is to reduce the speed of the high-energy mainspring to a more manageable and consistent rate that can be used to power the watch’s timekeeping mechanisms. The number of teeth on each wheel is carefully calculated to ensure that the correct amount of power is transferred from one wheel to the next, and that the rate of rotation is precisely controlled. Any deviation from the ideal rate can result in inaccurate timekeeping, so the gear train is a critical component that requires meticulous engineering and design.
Crown
The crown is the small knob usually located on the right-hand side of the watch case that is used for setting the time and winding the watch. It may seem like a small detail, but the crown is crucial for maintaining the accuracy and functionality of a mechanical timepiece.
To set the time on a mechanical watch, the crown is typically pulled out to its first or second position, depending on the specific watch model. When pulled out to the first position, the crown can be turned to adjust the time. When pulled out to the second position, the watch can be wound by turning the crown in a clockwise direction. This winds the mainspring, which stores the energy that powers the watch’s movement.
The crown is also important for maintaining the water resistance of a watch. Many modern mechanical watches are designed to be water-resistant, and the crown is a key component in ensuring that water does not penetrate the watch case. To maintain the watch’s water resistance, the crown must be screwed down tightly against the case. This creates a seal that prevents water from entering the watch through the crown.
In addition to its functional role, the crown can also be a design element in a mechanical watch. Some luxury watch brands have made the crown a signature feature of their timepieces, incorporating unique shapes and materials to add to the watch’s overall aesthetic appeal.
Dial
A dial, also known as the watch face, is the part of the watch that displays the time and other useful information such as the date, moon phase, and other complications.
The dial is usually made of metal, enamel, or sometimes even precious stones like mother of pearl, and it can be decorated with intricate patterns or designs. The most common layout for a dial features twelve hour markers, but some watches may also include minute markers, numerals, or other design elements.
The hour and minute hands are attached to the center of the dial and move around it as time passes. In some watches, the hands may be coated with a luminous substance, making them visible in the dark.
Another important element of the dial is the crystal, which is a transparent cover that protects the dial from dust, moisture, and other external elements. The most common materials used for watch crystals are sapphire, mineral glass, and acrylic.
In addition to displaying the time, dials can also include other features known as complications. These can include functions such as chronographs, alarms, or world time displays. Some watches even feature dials that display astronomical information, such as the position of the sun and moon.
Conclusion
Mechanical watches may seem like a thing of the past, but they are a testament to the incredible craftsmanship and engineering that has gone into watchmaking for centuries. Understanding how they work and appreciating their precision can help us to appreciate the art of watchmaking, as well as the timepieces themselves.
